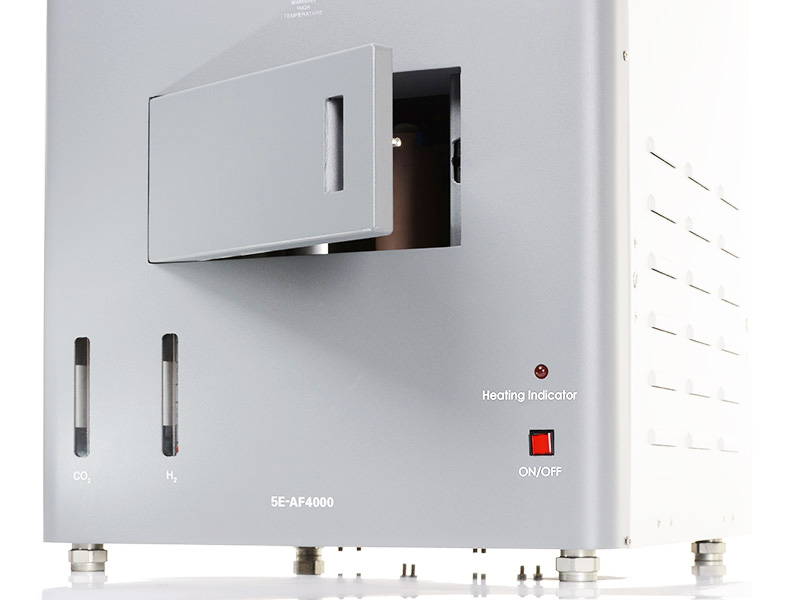

  • CKIC 5E-AF4000 Ash Fusion Determinator

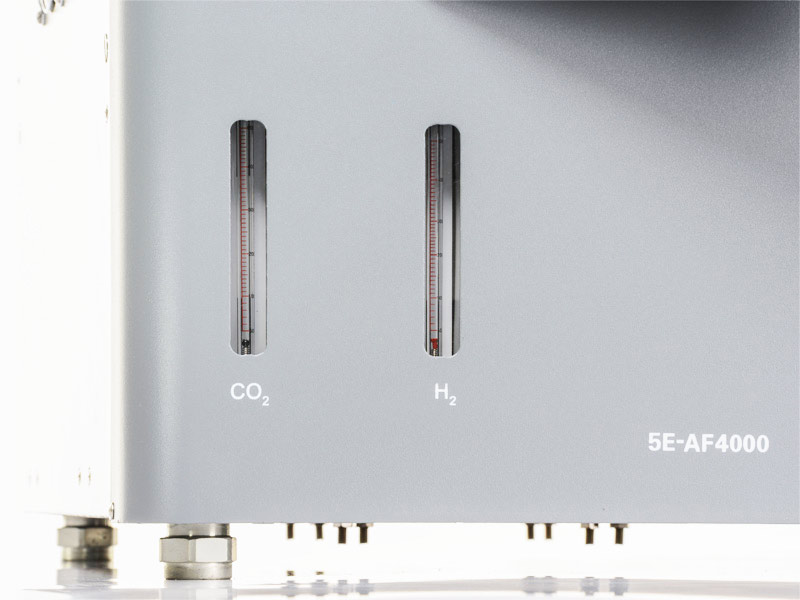

  • CKIC 5E-AF4000 Ash Fusion Determinator

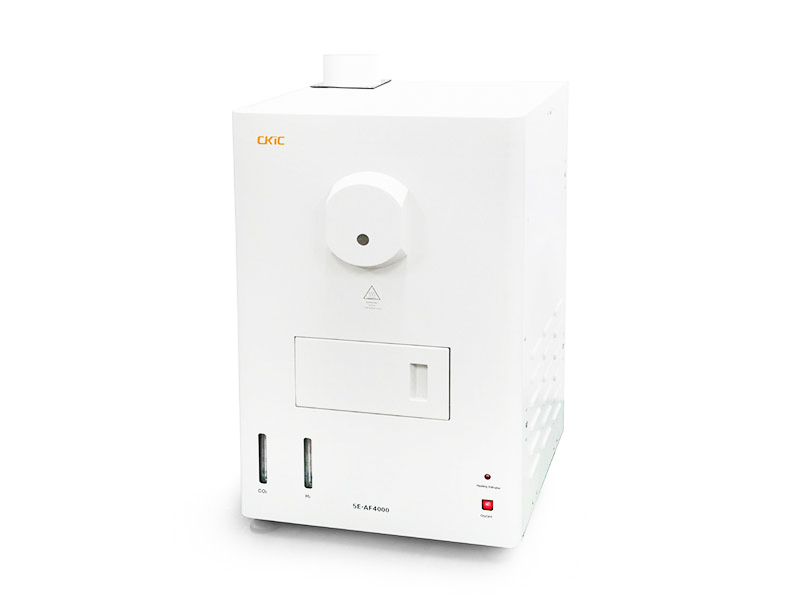

  • CKIC 5E-AF4000 Ash Fusion Determinator

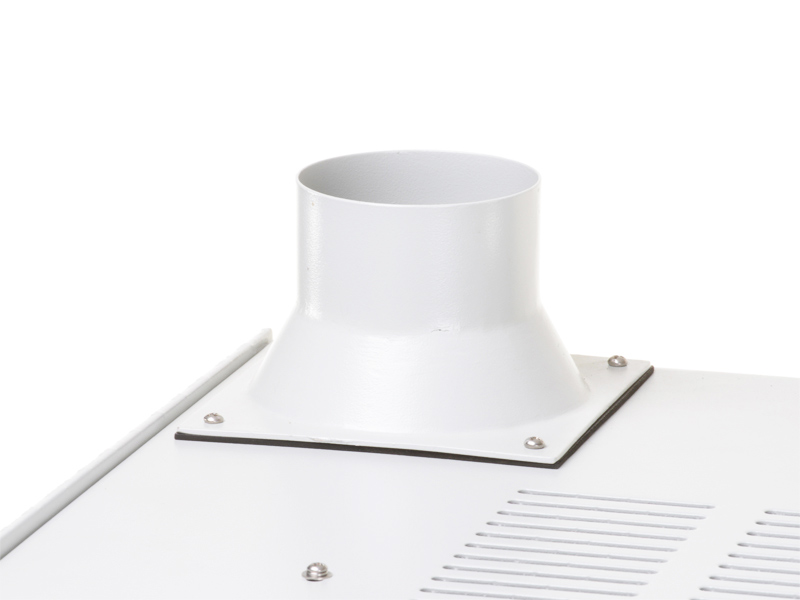

  • CKIC 5E-AF4000 Ash Fusion Determinator

5E-AF3000 Ash Fusion Determinator

5E-AF3000 Ash Fusion Determinator is used to determine ash cone deformation temperatures in coal ash, coke ash, biomass ash and mold powders automatically, which are critical to the boiler functioning properly and to avoid slagging and fouling.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specification
  • Spare parts
  • Case
Standard Configuration: Computer
Main analyzer
A/C adapter
Ash cone plate
Activated carbon

Combustion cup
Duab kit
Ash cone module
Gasket kit
Tool kit

Optional Configuration:
7 samples ash cone plate (ISO std)

1. Determine four critical temperatures (DT, ST, HT, FT) automatically.
2. 3.2Mega-pixel professional camera provides high resolution image.
3. Durable heating element with Si-Mo material and ergonomic vertical furnace design ensures stable working temperature.
4. Video clips available for replaying, which makes automatic identification and manually identification available.
5. Atmosphere simulation by using graphite and activated carbon, minimize the operation cost without gas consumption.
6. Automatically check the gas leakage with auditory alarm and gas flow terminated if triggered.

Model 5E-AF3000 Ash Fusibility Determinator
Conforms to Method AS 1038-1995, ASTM D1857/D1857M/E935/935M, ISO 540,
UNI CEN/TS 15370,
GB/T 219, GB/T 30726, BS 1060-1995
Max. Sample loading GB and ASTM: 5 Samples   ISO: 7 Samples
Max. Temp. Up to 1600
Temp. Control Precision ±1
Camera pixel 3.2 Mega-pixel
Image Frame 1 frame per 2
Heating Rate 4℃/min-20℃/min adjustable
Analysis Atmosphere Oxidizing Atmosphere / Reducing Atmosphere
Power Supply Single phase, AC220V±10%, 50/60Hz, ≤3.5kW
Net Weight 65kg
Dimension(mm) 480mm×470mm×740mm
