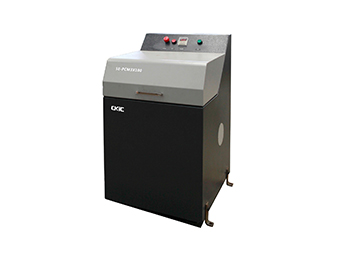

5E-PCM Series Pulverizer

5E Series Pulverizer is used to pulverize the sample after crushing in power plants, coal mines, chemical industry, metallurgy, building material and geology, in which an analysis sample of particulate material is prepared.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specification
  • Spare parts
  • Case

1. Adopt customized vibration motor to realize a high efficiency.
2. Wear-resistant alloy steel, tungsten carbide and other materials are adopted to improve the wear resistance and prolong the service life.

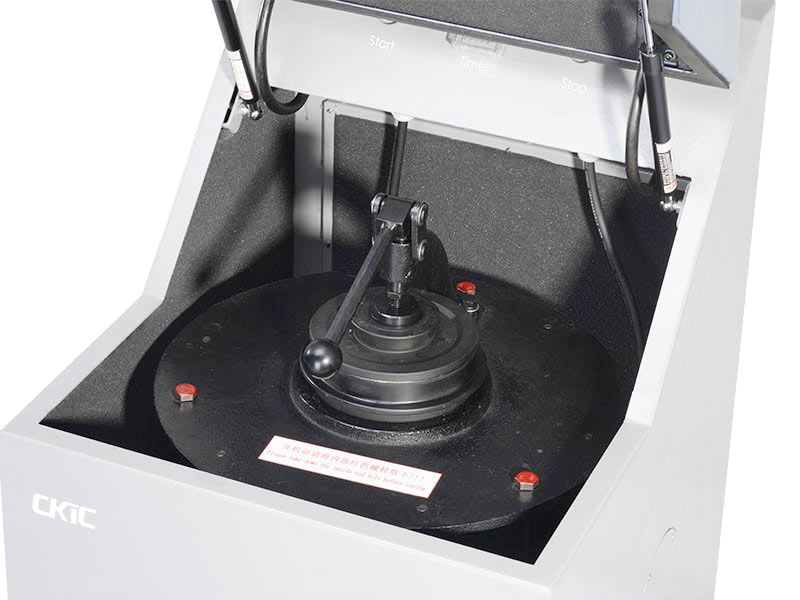

3. The clamping mechanism of the bowl body adopts a rapid clamping structure (Patent Number: 200920177307.3)
4. Equipped with double-layer frame, multi-layer damping measures are taken to reduce the vibration energy, which overcomes the swinging and crawling.
5. It is easy to install without fixed foundations.
6. Good safety with power-off switch when open the lid.

Model 5E-PCM1×100 5E-PCM3×100
Number of Crushing Bowls 1 3
Gross mass of sample 1×100g 3×100g
Feed Size ≤13mm
Discharge Size ≤0.2~0.071mm
Approx. Hardness of Feeding Sample HRC50-55
Working Volume of Bowl 120-130ml
Power Supply 3 phases, AC380V±10%, 50/60Hz, 1.5kW
Noise ≤85dB
Net Weight 170kg 190kg
Dimensions(L×W×H) 520mm×580mm×860mm
