5E-MW6522/5E-MW6536 Automatic Moisture Analyzer | Proximate Analyzer | Moisture Analyzer

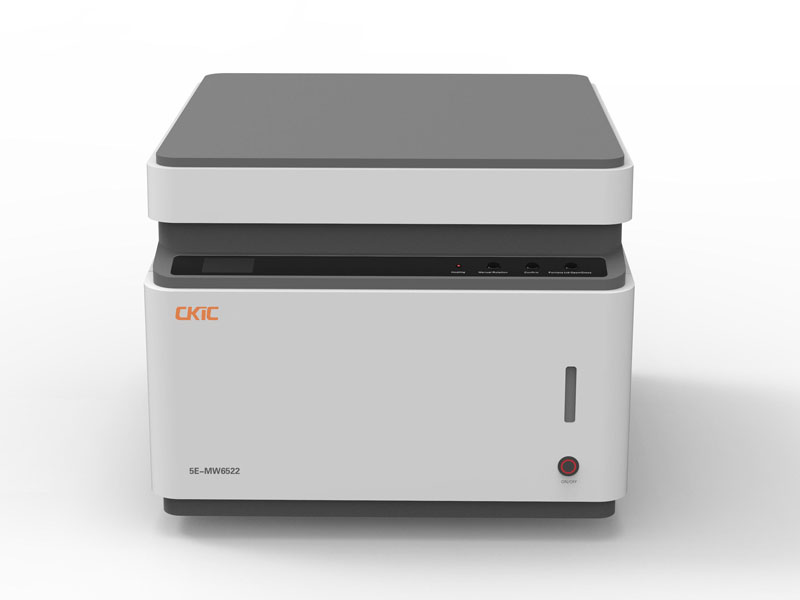

Available Models: 5E-MW6522 Automatic Moisture Analyzer

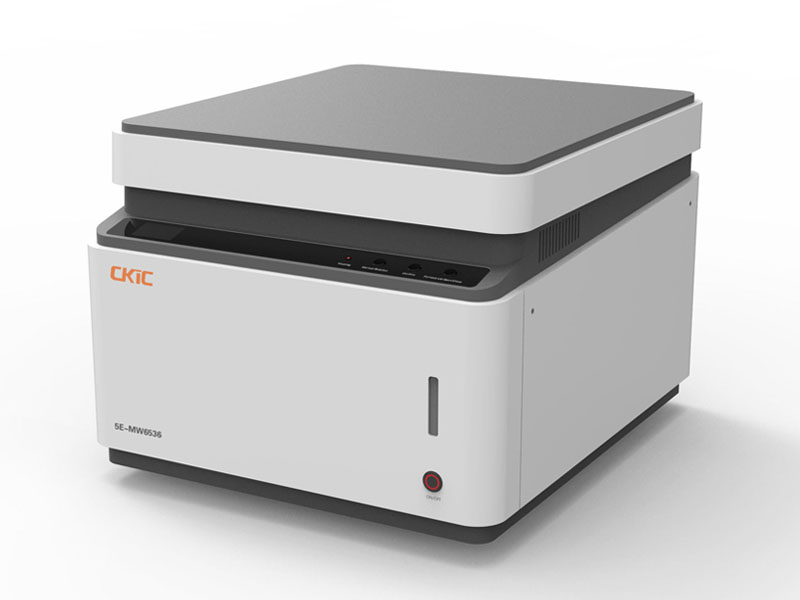

5E-MW6536 Automatic Moisture Analyzer

Features:High Efficiency1. The furnace chamber is made of high-quality stainless steel, with good heat resistance and heat reflection performance, which guarantee the temperature uniformity.
2. Advanced PID temperature control, which gives fast temperature rise and high precision temperature control inside the furnace.

High Accuracy1. Using the classic blast drying method, the test results of 5E-MW series are accurate and reliable, which comply with the international standard and CNAS laboratory requirement, capable of drying the sample in nitrogen atmosphere.
2. Advanced PID temperature control, which gives fast temperature rise and high precision temperature control inside the furnace.

Easy Operation 1. 5E-MW series can complete the whole procedure automatically from the weighing, temperature control, atmosphere control, to the result calculation.
2. Build-in LCD screen displays the weight, crucible No., temperature, and analysis phase in real-time, which makes the operation friendly.
3. Introduced the top-opening furnace door which can automatically open and close. The inside rotatory plate can be rotated manually, which makes the sample loading easy and fast.
4. Built in functions of power-off protection.
5. It has ports for connection with the LIMS.

Model	5E-MW6522	5E-MW6536
Conforms to Method	GB/T 211-2017, GB/T 212-2008, ASTM D3302, ASTM D3173
Analysis Method	Nitrogen Charging or Air Drying
Coal Type	Anthracite, Bituminous, Lignite
Sample Type	≤0.2mm Inherent Moisture Sample (0.9-1.1g); ≤6mm Total Moisture Sample (10-12g)
Max. Sample Loading	22	36
Analysis Time	Rapid Method: around 1h/batch Classical Method: around 2h/batch (Note: Analysis time depends on the specific sample)
Max. Temperature	200℃
Temp. Control Precision	±2℃
Power Supply	Single Phase, AC220V±10%, 50/60Hz, ≤3kW
Net Weight	100kg
Dimension(L×W×H)	720mm×650mm×500mm

5E-MW Series Automatic Moisture Analyzer
