5E-MAC6710 Proximate Analyzer - TGA | Proximate Analyzer

Standard Configuration: Computer
Main analyzer
Air compressor
Crucibles
Weighing rod base

Weighing road
Three-core power socket and plug/20A
Crucible lid for volatile matter
Glass spoon(small size)
Standard Reference Material(GBW)
Tool kit

Features:High Efficiency1. Up to 19 samples can be determined within 2 hours for moisture, ash, volatile matter analysis and to calculate the fixed carbon.
2. Embedded furnace wire is adopted, which makes the operation more safer with more uniform furnace temperature.
3. Double control (One PC controls two furnaces) is available.

High Accuracy1. Thermogravimetric technology with blank crucible calibration in the same atmosphere to ensure weighing accuracy.
2. Adjustable ramp rate and real-time display for thermal weight curve, manage data and graph seamlessly.
3. MAC 6710 uses sheathed thermocouple, which has strong corrosion resistance and longer service life.

Easy Operation 1. Furnace cover can be opened and closed automatically by pneumatic system, no heat hazard and labor saving.

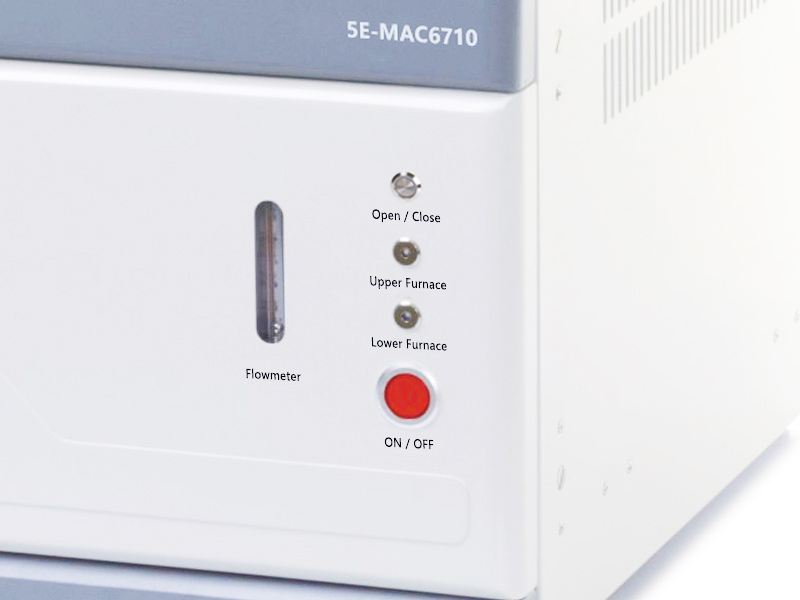

2. Real time display of balance reading, which makes it convenient to control the precision of sample weight.
3. Wide application for limestone, cement, iron ore.

Model	5E-MAC6710 Proximate Analyzer -TGA
Comforms to Method	ASTM D7582, ASTM D5142, ISO 17246, GB/T 30732, ASTM D3175
Automatic Function	Yes
Control Ability	2 units/1 PC available
Maximum Ramp Rate	50℃/min
Analysis Time	≤120mins for 19 samples of three parameters ≤120mins for 38 samples of three parameters(Double Control)
Sample Mass	0.8-1.2g recommended / up to 5g
Temp. Range	Up to 1000℃
Temp. Controlling Resolution	±2℃
Power Supply	Single phase, AC220±10%, 50/60Hz, ≤5 kW
Net weight	50kg
Dimensions(L×W×H)	550mm×580mm×530mm
