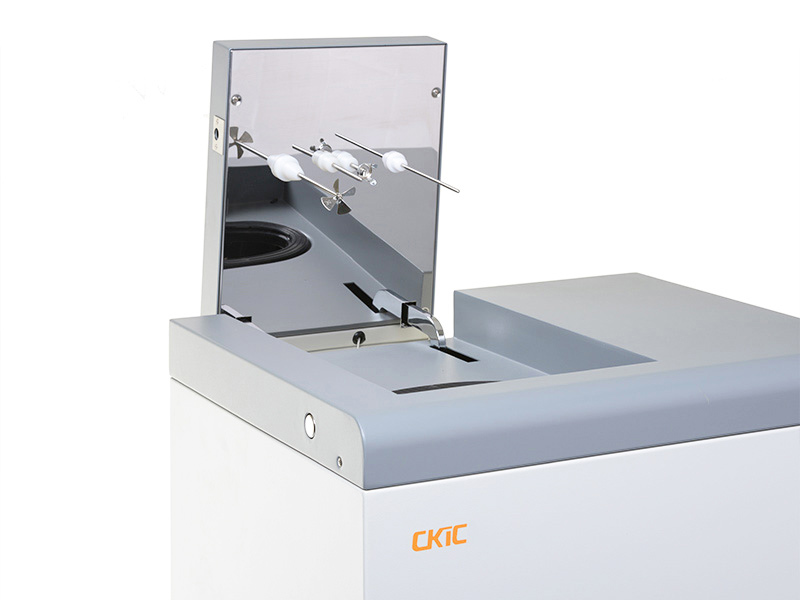

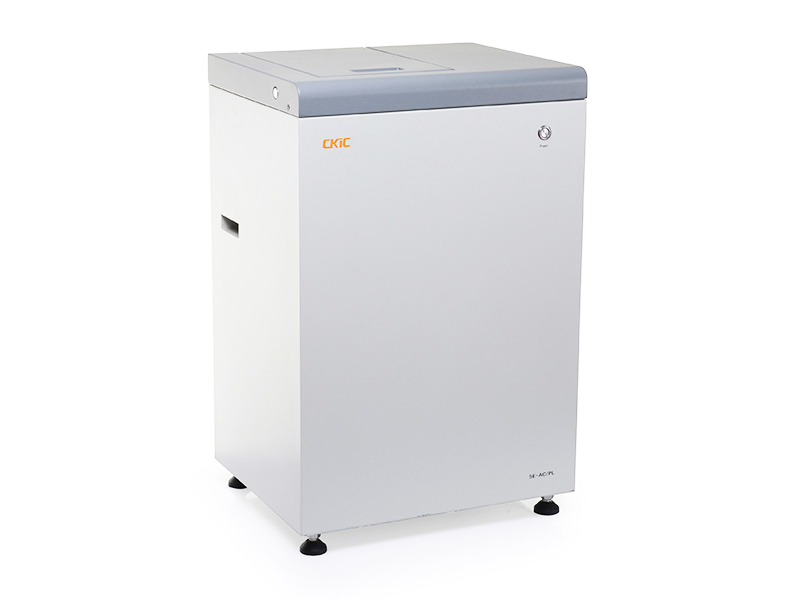

5E-AC/PL Calorimeter | Calorimeter

Standard Configuration:
Main analyzer
Standard CV bomb
Computer
Handle Oxygen Charger
Crucibles
Ignition Wire
Benzoic Acid
O-ring kit
Tool kit

Optional Configuration:
Lens paper
Pellet press&
Bench-top oxygen charger
Halogen Resistant Oxygen Vessel

Features:1. Water cycling system applies the theory of communicating vessels, simple and reliable.
2. Large jacket volume minimizes the heat transfer between bucket and the environment.
3. Large water tank is equipped for cooling down water from the bucket after each analysis.
4. Auto-diagnosis, remote data transfer and balance connection available.

Model	5E-AC/PL Calorimeter
Conforms to Method	AS 1038.5, ASTM D5865, ASTM D4809, ASTM E711, BIS 1350, BS EN 15400, GB/T213, GB/T30727, ISO1928, ISO9831, ISO 18125, ASTM D240
Measuring range	Up to 50000J
Temp.Resolution	0.0001℃
Control Ability	2 Units/ 1 PC available
Analysis Time per Sample	Dynamic method:about 11mins; Classical Method: about 16mins
Jacket Type	Isoperibol
Vessel Identification	Up to 2 for automatic, several for manual
Balance Connection	Available
Network Connection	Available
Bucket Filling	Automatic
Oxygen Filling	Semi-Automatic
Structure	Vertical
Bomb Vessel Lifting	Manual
Power Supply	Single phase, AC220V±10%, 50/60Hz,≤500W
Net Weight	75kg
Dimensions(L×W×H)	Vertical: 580mm×550mm×950mm
* Test Condition: 1. Ambient temp.20℃±1℃,humidity75%±5% 2. No strong interference source nearby 3.Clean water circuit with distilled water 4. Refer to the precision of ten acceptable calibration test runs
