  • 5E-CS3700 Inorganic Carbon Sulfur Analyzer

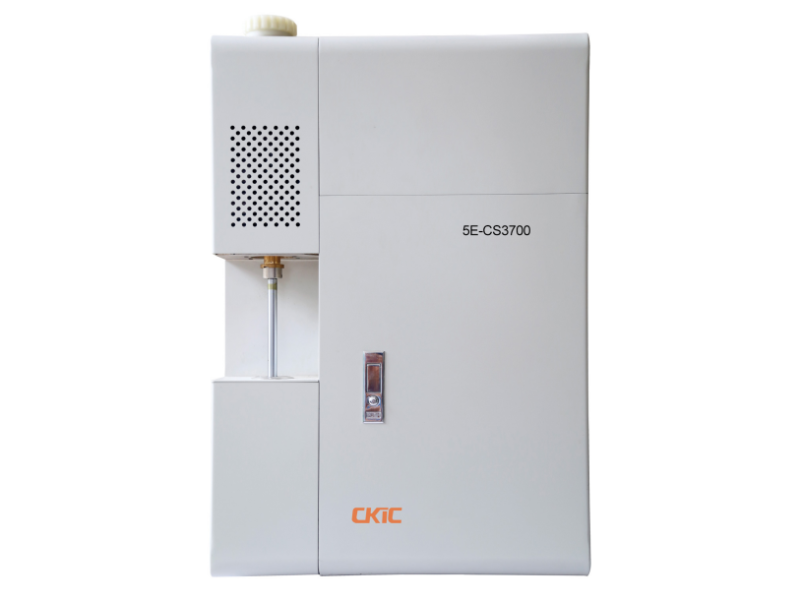

5E-CS3700 Inorganic Carbon Sulfur Analyzer

5E-CS3700 Inorganic Carbon Sulfur Analyzer integrates the high-frequency combustion and infrared analysis. It has wide analysis ranges, various sample types, and high analysis accuracy.Instrument is equipped with three detection systems, including high-carbon, low carbon, and low sulfur.

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

  • Features
  • Specifications
  • Spare parts
  • Case


Novel Design
1. Partial design of high frequency combustion and infrared detection.
2. Reliable pneumatic control system can continuously analyze 100,000 samples without any fault.
3. Unique design of reverse purging, which can continuously analyze thousands of samples without purging the furnace.
4. High precise gas flow controller is not affected by temperature, pressure and other external factors.
5. Infrared detection device with the unique photoelectric integration design
6. Motor imported from Switzerland can work continuously for 30000 hours without fault.
7. Ultra-porous stainless steel metal dust filter is corrosion resistant which can be used for a long term without cleaning.

Smart Software
1. Unique multiple curve is designed to store up to 40 carbon curves, 20 sulfur curves, and support the user to set their own curves.
2. Unique temperature, flow and peak width compensation ensures the accurate analysis result.

Friendly Operation
1. Identify the balance from various supplier worldwide.
2. Each analysis results can be sent to other computers via serial port or local network (UDP / IP protocol).
3. Optional large screen display.

Model 5E-CS3700 Inorganic Carbon Sulfur Analyzer
Conforms to Method IS04935-1989, GB/T 20123-2006
Analysis Range High-Carbon: 0.0001 %-20%(extendable)
Low-Carbon: 0.00001 %-0.5% (extendable)
Low-Sulfur:0.00001%-5% (extendable)
Precision of Balance 0.0001g
Analysis Time 25-50s
Ambient Temperature 15-35
Net Weight 80 kg
Power Supply AC220V, 50Hz, 3kW
Dimensions(L×W×H) Analyzer: 310mm×470mm×620mm
Balance: 195mm×330mm×304mm
