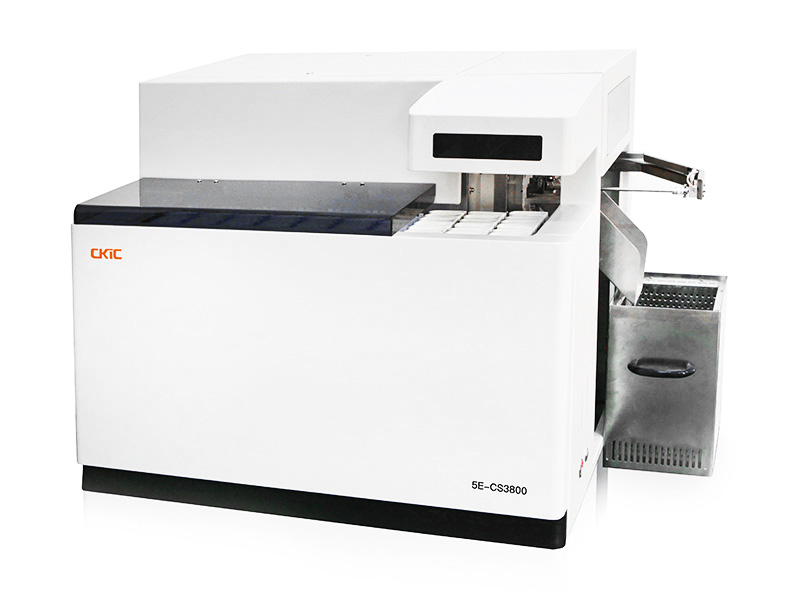

5E-CS3800 Sulfur Carbon Analyzer

5E-CS3800 Sulfur Carbon Analyzer which is developed on the basis of 5E-IRS3600, is used to determine the carbon and sulfur content in coal, coke, biomass, SRF and other organic combustibles. With pioneering technology of auto loading and combustion worldwide, it can realize automatic analysis for large quantity samples with accurate results. 5E-CS3800 is widely applied in coal mines, power plant, environmental, commercial inspection and scientific research, etc. It must be mentioned that 5E-CS3800 is especially suitable for the commercial laboratories, power plants with large quantity samples for analysis, which helps to minimize the manual operation and make the analysis easier.

Get a Quote Online Inquiry Send E-mail PDF Download

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

Features
Specifications
Spare parts
Case

Features:High Accuracy and Efficiency
1. With high temperature combustion and Infrared absorption method, the test results of carbon and sulfur content can be got at the same time. Analysis time is within 2 minutes per sample with accurate results.

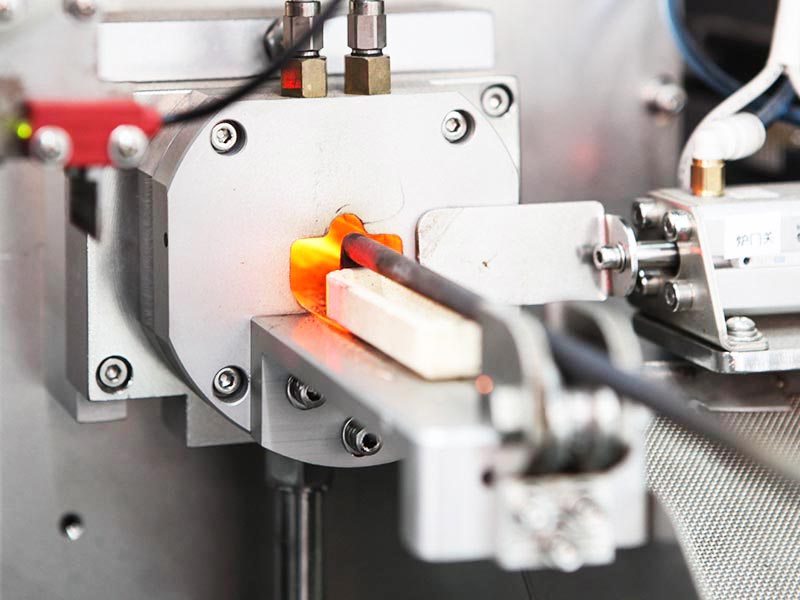

2. Patented dual oxygen lance ensures there is plenty of oxygen in furnace, which accelerates sample combustion to increase analysis efficiency. Moreover, Unique gas tightness structure reduces the influence of CO₂ and SO₂ in the air on results.

Reliable Auto-sampler System

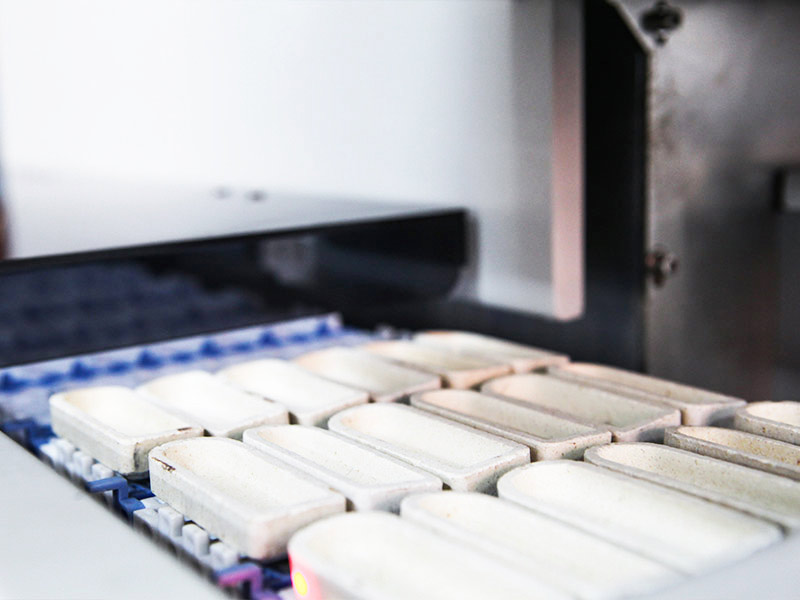

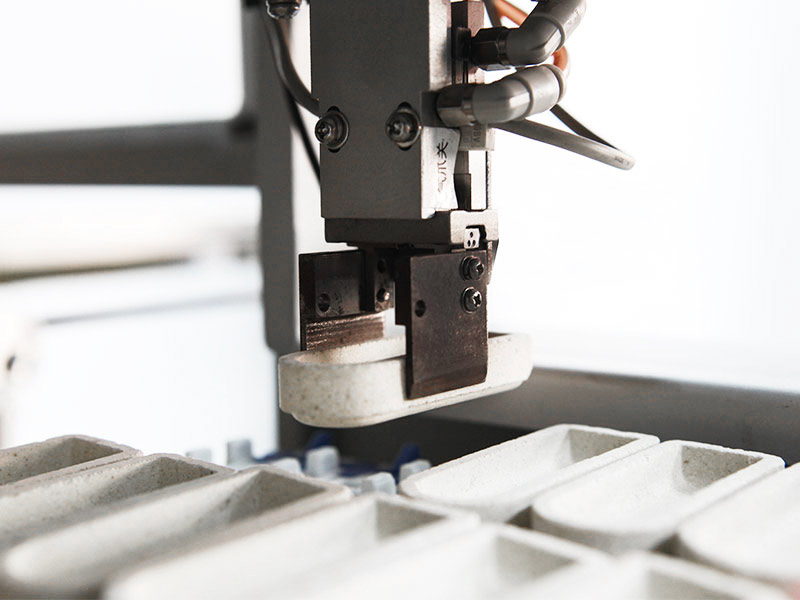

With reliable auto-loader, maximum throughput 60 samples per batch, it ensures smooth operation. The manipulator can automatically complete positioning the crucible, moving and removing it continuously. It is testified as an effective instrument to help the lab realize unattended operation.

Powerful Software
The real-time sample mass, test results, process parameter and operational status of analyzer can be automatically transferred to the LIMS system by balance connection through software, which ensures to remote monitor andcollect carbon emission data.

Easy Service
Equipped with function of intelligent self-diagnosis system, it can offer automatic voice alarm in case of breakdown, and remind the operator to do proper maintenance.

Model	5E-CS3800 Sulfur Carbon Analyzer
Conforms to Method	GB/T 25214, GB/T 30733, DL/T 568, ASTM D4239, AS 1038.6.3.3, ASTM D1552, ASTM D3177, ASTM D 4239, ASTM D5016, ISO 19579, GB/T 214, GB/T 25214, GB/T 28732, BS1016
Analysis Range	Sulfur: 0.1-30%; Carbon: 0.5%-100%
Analysis Resolution	Sulfur: 0.01%-100ppm; Carbon: 0.05%-500ppm
Sample Mass	100-400mg
Sample Loading	60 samples per batch automatically and continuously
Analysis Time Per Sample	≤120s
Analysis Temp.	1350℃
Power Supply	AC220V, 50Hz, 4kW
Net Weight(L×W×H)	70kg
Dimensions(L×W×H)	980mm×615mm×680mm
