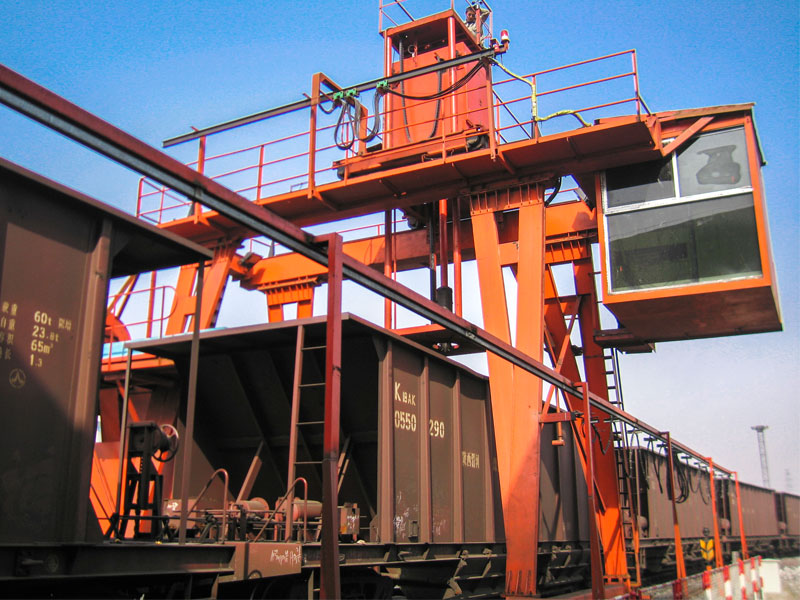

5E-CYH Railway Wagon Sampler

5E-CYH Railway Wagon Sampler is used for random sampling of bulk materials in the carriage of train. It consists of sampling system, electrical control system, automatic ultrasonic positioning system and coal surface detecting device.

Get a Quote Online Inquiry Send E-mail PDF Download

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

Features
Specification
Spare parts
Case

Features:
1. Two augers can be equipped to meet the demands of sampling different materials.
2. Full section sampling fully comply with the mechanical sampling standard.
3. Single point sampling and multipoint sampling are available to increase the efficiency.
4. Automatic ultrasonic positioning technology ensures reliable results without human interference.
5. Crushing and division by online sample preparation system is available.
6. Capable to connect with information management system.
7. Control methods: Touch Screen Controller+PLC/Automatic/Semi-Auto/Manual.

Intergration Solution for Sampling and Sample Preparation:
Railway Wagoin Sampler + Conveyor Belt (60m) + Automatic Sample Preparation System

Model	5E-CYH-M Railway Wagon Sampler	5E-CYH-Q Railway Wagon Sampler
Type	Wagon sampler of door type	Wagon sampler of bridge type
Power	40-70kw	40-70kw
Single Point Sampling Time	70-100s	70-100s
System Efficiency	≥ 15 units/h	≥ 15 units/h
Power Consumption	20kw/h-30kw/h	15kw/h-25kw/h
Controlling Mode	Auto/Semi-auto/Manual	Auto/Semi-auto/Manual

Different type of sampling head for bulk material (nominal top size ≤ 50mm) is as follows.

Sampling Head	Picture	Application	Moisture Adaptability	Model	Aperture of Cutter	Max. Sampling mass
Rotary Cylinder Auger		Coal, Limestone, Coke, Lump	≤35	CTB20N.00	Φ200	16L
Rotary Cylinder Auger		Coal, Limestone, Coke, Lump	≤35	CTB15N.00	Φ150	10L
Long Spiral Auger		Coal	≤20	LLC26033J.00	Φ273	110L
Short Spiral Auger		Coal Limestone, Pellet, Iron Ore, Zinc Power	≤10	LCT273.00	Φ273	15L
Short Spiral Auger		Coal Limestone, Pellet, Iron Ore, Zinc Power	≤10	LCT325.00	Φ325	25L
