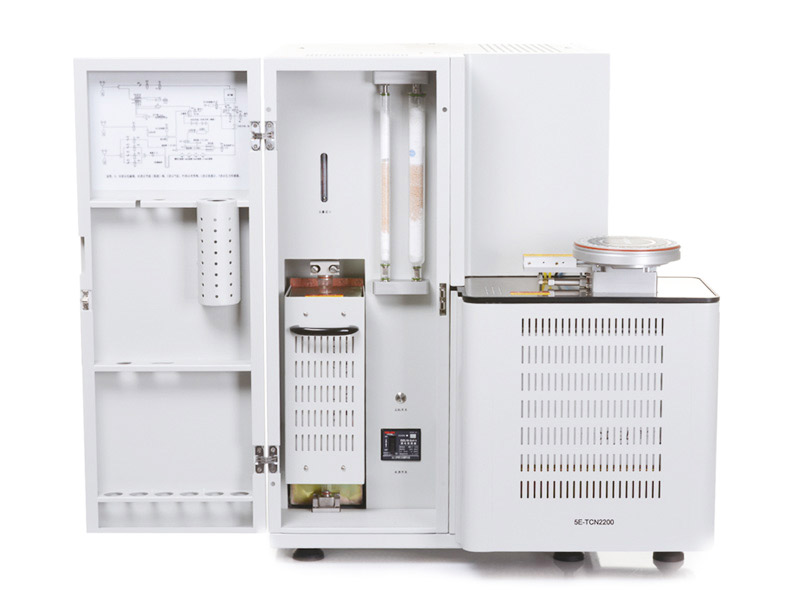

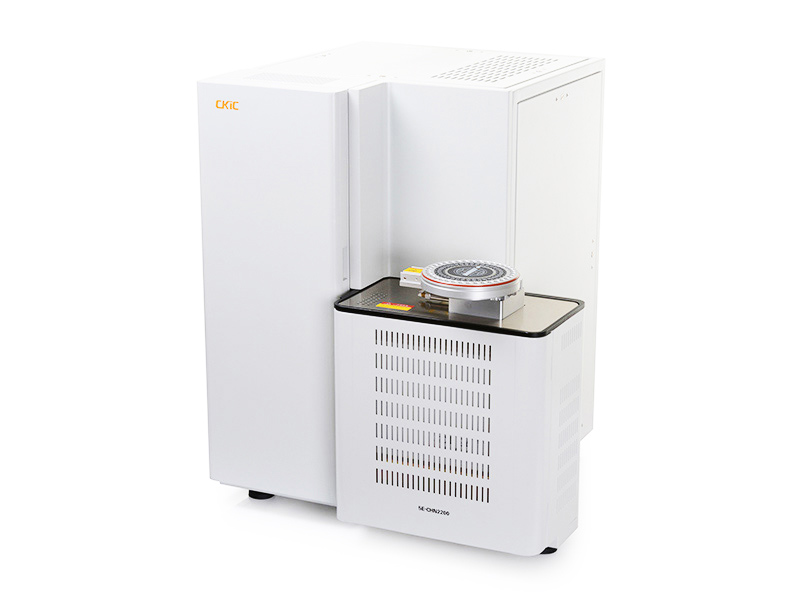

5E-TCN2200 Nitrogen/Protein Analyzer

5E-TCN2200 is a powerful Dumas Protein/Nitrogen Analyzer, able to perform precise nitrogen analysis and protein determination, known also as “Combustion method”, it ensures precise results in few minutes, breaking down the sample into its elemental compounds. Substances produced, such as H₂O, O₂ and CO₂, are trapped and removed, in order to ensure the correct detection of the nitrogen. It’s an alternative to Kjeldahl method for the determination of nitrogen and protein in different types of sample. Dumas method is the faster official one, validated by different International Organization.

Get a Quote Online Inquiry Send E-mail PDF Download

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

Features
Specifications
Spare parts
Case

Standard Configuration: Computer
Main analyzer
2-layer carousels
Furnace reagent
High purity copper
N-Catalyst
H₂O sorb reagent

Optional Configuration:
Up to 4-layer carousels
4cm x 4cm size tin-foil cup
Bigger size hole carousel

CO₂ sorb reagent
Silica wool
Lower crucible
Upper crucible
O-ring kit
Tool kit

Features:Maximum Efficiency

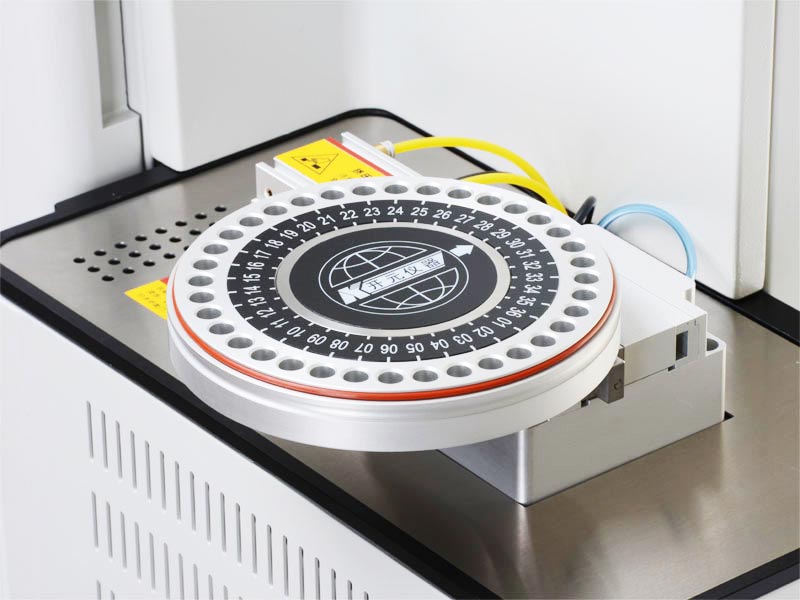

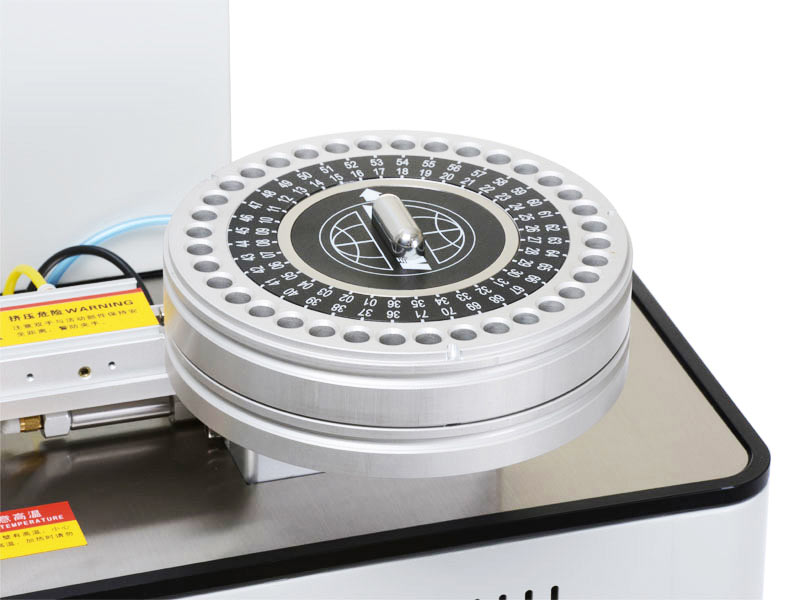

1. High throughput: standard auto loader for 35 samples per layer, stackable to 4 layers available.
2. Closed-loop water circulation assures the purity of water system without any additional solution.
3. Dual-stage furnace system with pure oxygen flow to ensure the complete combustion of all samples.

Good Environment Adaptability
1. Optimum gas circuit provides good gas tightness of the system.
2. O-ring free from heat resource.

Minimum Consumption
1. To determine N by TCD.
2. Saving time, gas and reagent: only 5.5ml blended gas needed to be analyzed.

Unattended Operation
The operator is limited to just adding sample to auto sample loader. Then the instrument will finish the test, cool down and shut off automatically.

Model	5E-TCN2200 Nitrogen/Protein Analyzer
Conforms to Method	AOAC 990.03, AOAC 992.15, AOAC 992.23, AOAC 993.13, AOAC 997.09. AACC, ASBC, ISO 29541, ISO 16634, OIV, GT/B 30728, ASTM D5291
Analysis Time	5 mins, depending on sample combustion conditions
Sample Loader	Stackable auto loader, up to 140 samples by 4 layers
Repeatability	Nitrogen≤0.08%
Sample Mass	Up to1000mg, depending on sample matrix
Temp. Resolution	1℃
Gas Required*	Helium, 99.99%, 0.25± 0.01 Mpa
	Oxygen, 99.99%, 0.25± 0.01 Mpa
	Nitrogen or compressed air, 0.25± 0.01 Mpa
Consumption	Helium 200ml/min
Measurement Rang	Nitrogen: 0.04mg-50mg
Furnace Type	Resistance furnace, Max temp 1050℃
Power Supply	Single phase, AC220V ±10% , 50/60Hz, 5.5kW
Net Weight	110kg
Dimensions(L×W×H)	690mm×750mm×720mm
*Test Condition: If N≤0.8%, 99.999% high purity oxygen is required.
