Online Sample Preparation System

Reduction and division of the material by online sample preparation system is available.

Get a Quote Online Inquiry Send E-mail PDF Download

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

Features
Specification
Spare parts
Case

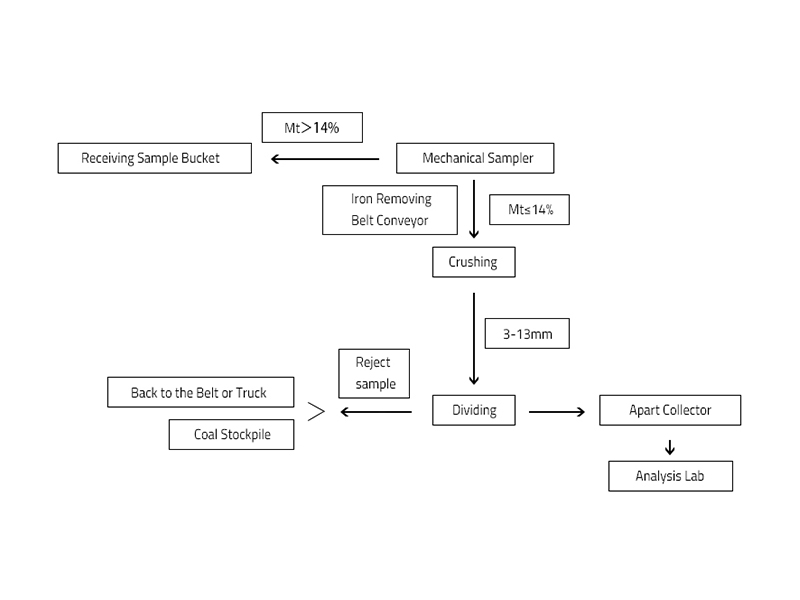

Process: (take GB as an example)

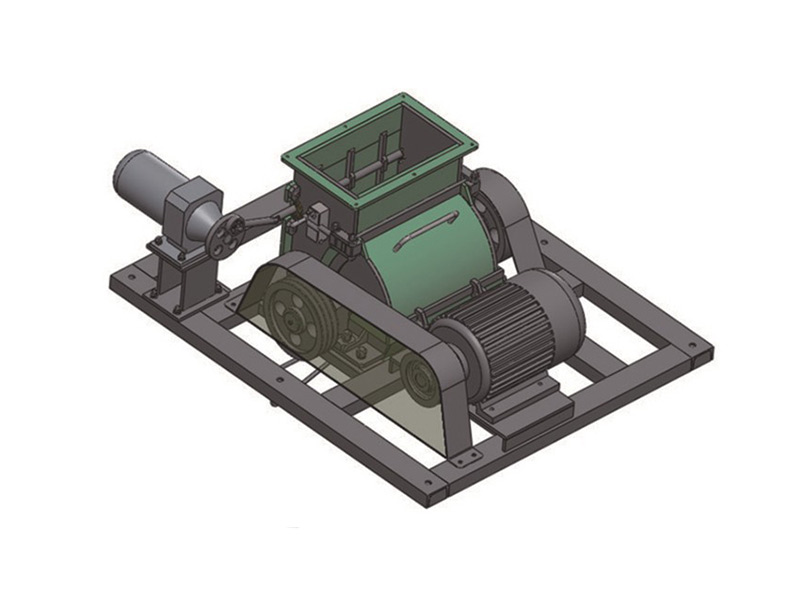

Sample Reduction - Hammer Crusher
During the crushing, the sample with high moisture easily adheres to the crushing plate. CKIC provides two kinds of cleaning devices to improve the moisture adaptability considerably.

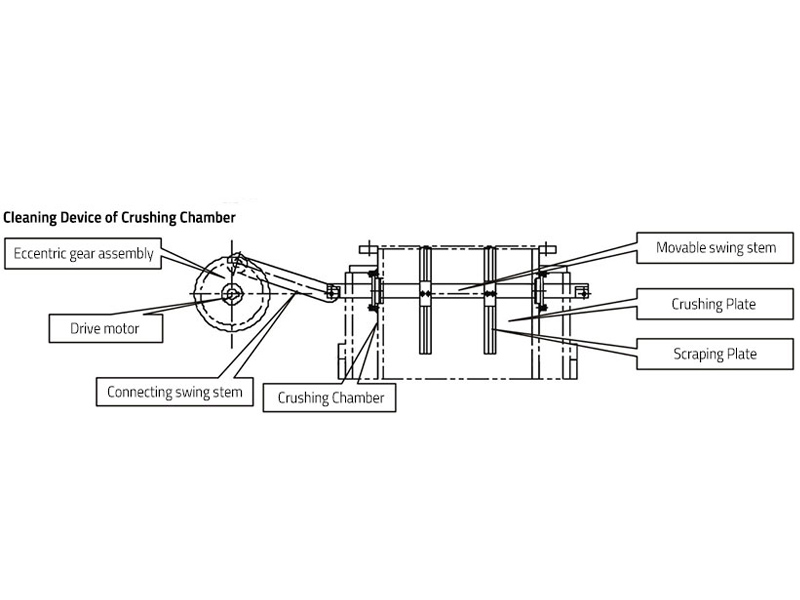

Cleaning Device for PC0303 Hammer Crusher
Equipped with cleaning device of crushing chamber, which consists of driving motor and scraper components, etc. During the crushing, the scraper will wipe the adhesive material on the crushing plate continuously.

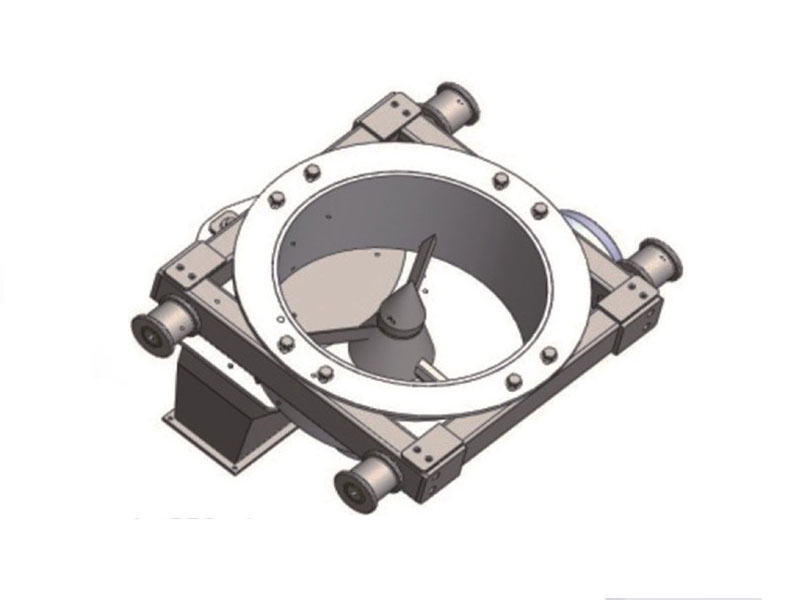

Sample Mixing - Material Mixing and Rectifying Device
The sample stream will be mixed uniformly after reduction to make sure the sample is more representative in the following dividing process.

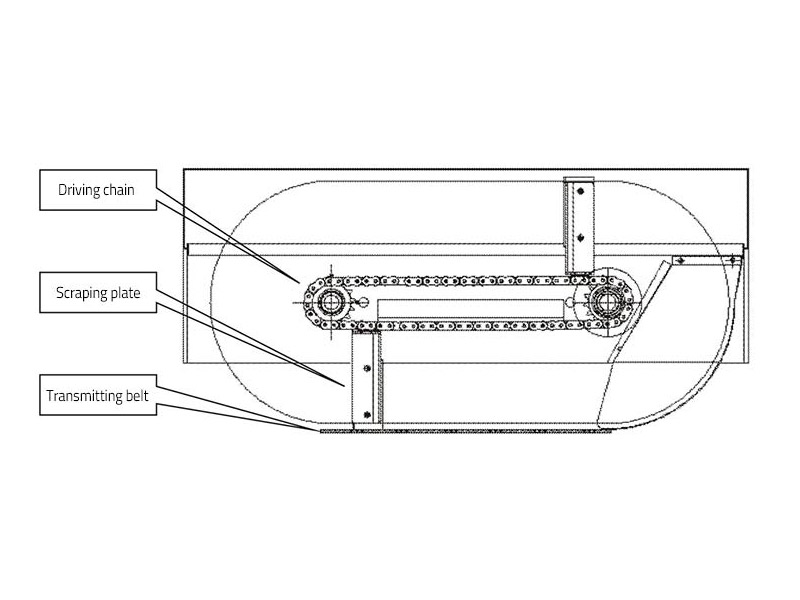

Sample Division - Scraper Dividing Device
Equipped on belt conveyor, which is well matched with the belt surface. Capable to extract a sample on full cross section completely.
