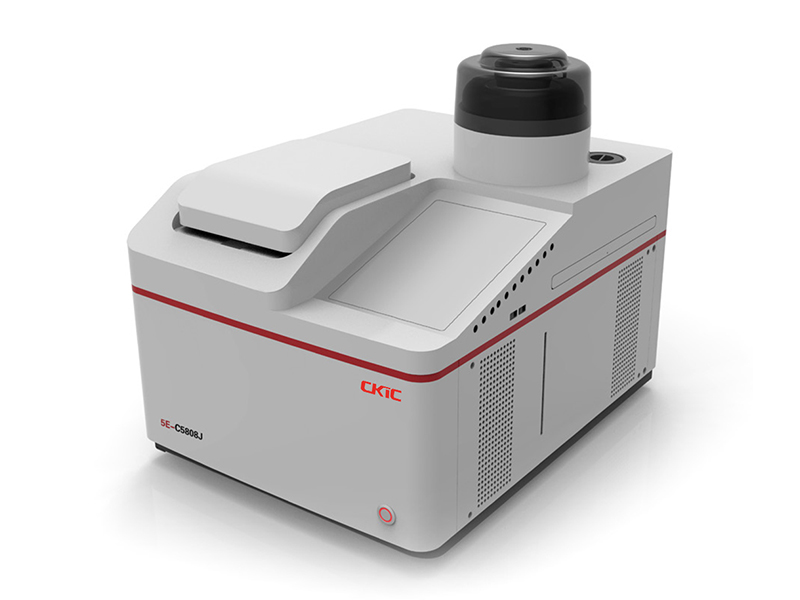

5E-C5808 Automatic Calorimeter ^NEW!

5E-C5808 is CKIC new generation calorimeter which is used to determine the calorific value of solid and liquid combustibles including oil, coal, coke, foodstuffs and biomass products. The calorific value is a crucial characteristic for each substance, also the key point to calculate the price of coal, so it will directly affect the economic benefits of the customers. This technique is widely applied in power plants, coal mines, metallurgy, chemical industry, commercial inspection, scientific research, etc.

Get a Quote Online Inquiry Send E-mail PDF Download

Please leave your E-mail address before download the product PDF. Your cooperation is appreciated.

Warm prompt: Please make sure you entered a correct E-mail address. We will send you relevant information and product quotation regularly.

Features
Specifications
Spare parts
Case

Models Available:

5E-C5808 Automatic Calorimeter (Ignition Wire)
5E-C5808J Automatic Calorimeter (Laser Ignition Technology)

Standard Configuration:
Main analyzer

Standard CV bomb -1 Unit
Crucibles
Ignition Paper/Wire
Benzoic Acid
O-ring kit
Tool kit

Optional Configuration:
Lens paper
Pellet press
Halogen Resistant Oxygen Vessel
Computer

Features 1. Pioneering laser ignition technology allowing easier and faster sample preparation, no ignition wire or cotton thread is needed(Available in 5E-C5808J model only)
2. 8min fast analysis for one sample
3. Automatic oxygen vessel lifting
4. Automatic oxygen charging and venting
5. Intelligent temperature control of the jacket and the water tank, the water constant temperature stability of the jacket reaches to 0.02℃
6. Available in PC or easy and convenient touch screen operation
7. Small space occupied with compact design
8. Intelligent diagnosis and safety protection function

Model	5E-C5808J	5E-C5808
Conforms to Method	AS 1038.5, ASTM D5865, ASTM D4809, ASTM E711, BIS 1350, BS EN 15400, GB/T 213, GB/T 30727, ISO 1928, ISO 9831, ISO 18125, ASTM D240
Precision (1g Benzoic Acid)	0.05% RSD *
Measuring Range	Up to 50000J
Heat Capacity Stability	≤0.2% within one year
Temp.Resolution	0.0001℃
Control Ability	2 Units/ 1 PC available
Analysis Time per Sample	8mins
Jacket Type	Isoperibol
Ignition Method	Laser Ignition	Ignition Wire
Vessel Identification	Yes
Balance Connection	Available
Network Connection	Available
Bucket Filling	Automatic
Oxygen Filling	Automatic
Bomb Vessel Lifting	Automatic
Structure	Benchtop
Power Supply	Single phase, AC220V±10%, 50/60Hz, ≤500w
Net Weight	75kg
Dimensions(L×W×H)	705mm×520mm×595mm
*Test Condition: 1. Ambient temp.20℃±1℃,humidity75%±5% 2. No strong interference source nearby 3. Clean water circuit with distilled water 4. Refer to the precision of ten acceptable calibration test runs
